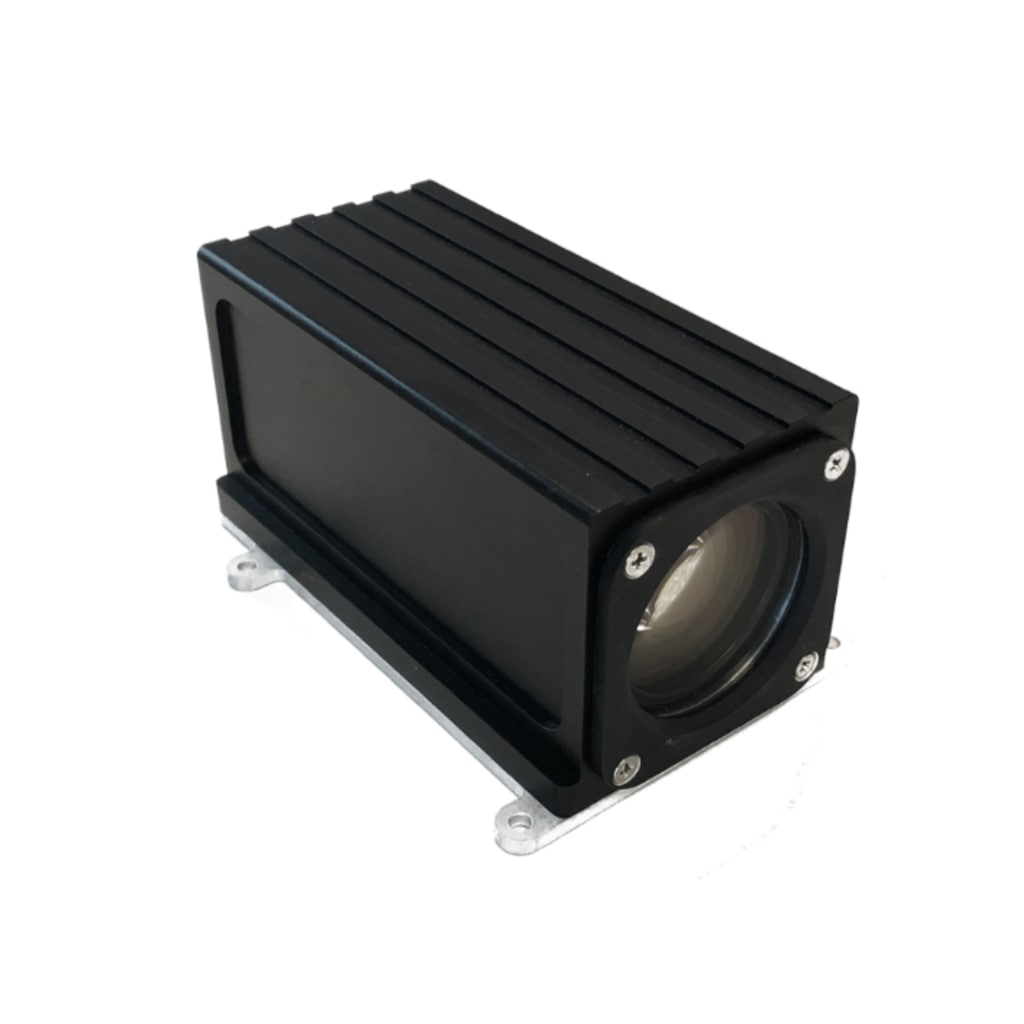

30x Ruggedized & Sealed Color Zoom Camera
SRCZ004-C0500SZN030X

30x Ruggedized & Sealed Color Zoom Camera

  • 30x Optical, 12x Digital Zoom
  • Analog video output – NTSC/PAL selectable
  • Ruggedized & Wide operating temperature range
  • Excellent low light operation
  • Environmentally sealed housing – IP67
Send Request
The SRCZ004-C0500SZN030X ruggedized camera incorporates a 1/2.8” back illuminated Sony CMOS sensor which provides high sensitivity and high dynamic range. Compact and light weight, the camera measures 123 x 59 x 65mm and weights approximatly 550grams. The camera can be controlled via the cameras serial interface.
Zoom 30x Zoom, 63.7° (wide) to 2.3° (tele)
Effective Pixels Approx. 2.3M pixels
Sensor 1/2.8” Sony Exmor R CMOS, 0.0015 lx
Video Output Analog NTSC/PAL
Weight 550 g
Power Consumption 3.2 W (motors inactive), 4.0 W (motors active)
Storage Temperature -55°C to +80°C
Storage Humidity 5% to 95% RH, non-condensing
Operating Temperature -20°C to +60°C
Operating Humidity 5% to 95% RH, non-condensing
Altitude Range -15,000 to 60,000 ft+

Technology for Harsh Environments –Across Air, Land, and Sea
