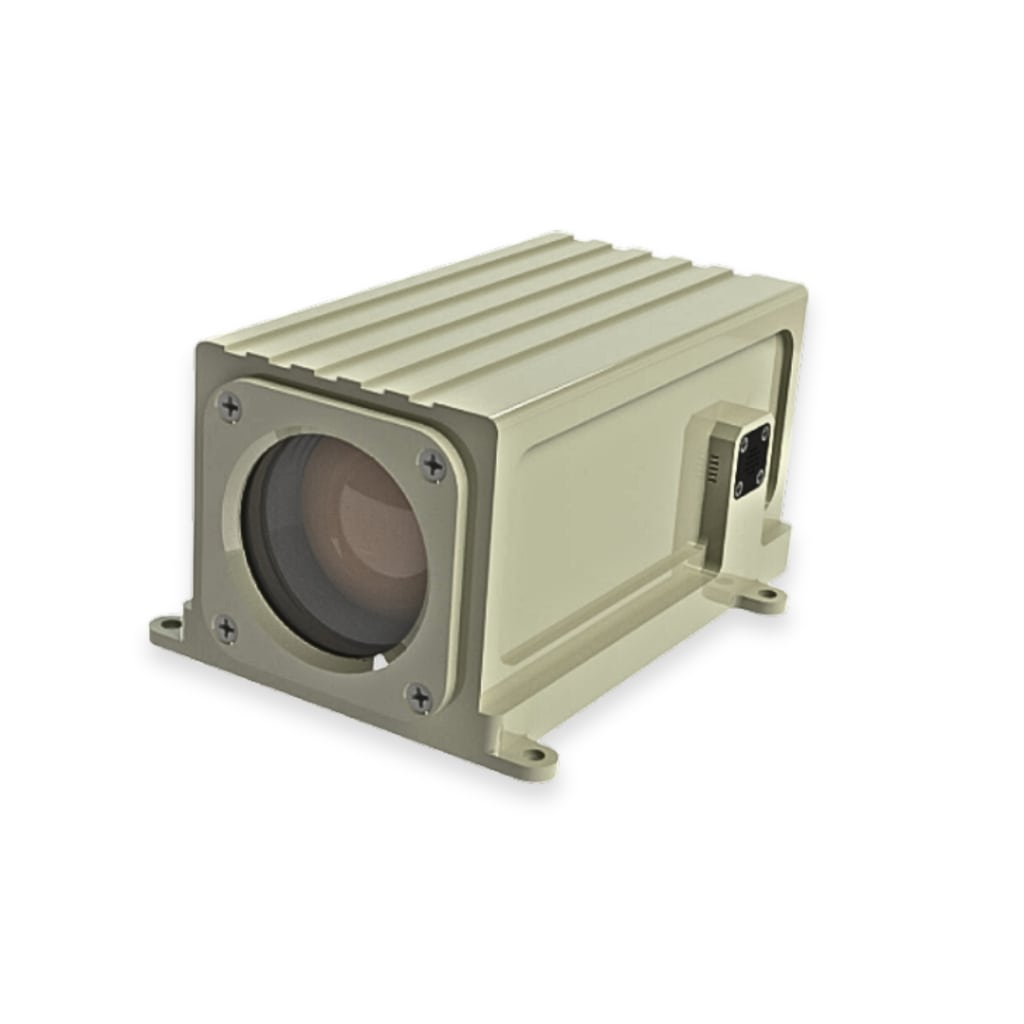

The SEKAI Low Light Level Camera is a fully ruggedized low light camera utilizing a high-performance imaging sensor optimized for low light level imaging. The fully solid-state CMOS sensor provides excellent imaging across varying light conditions, from daylight to very low-light levels. The SEKAI SRCZ110-M0104El-0065 provides high-definition video at 60 frames per second, without any need for external cooling. The camera has two connectors on the back featuring: the HD-video signal, the power- and control lines (CAN bus or a serial interface RS422). The camera provides high quality, low latency un-compressed video over an HD-SDI output and comes in a compact size to use in a variety of applications, e.g. as a Drivers-aid Camera or for vision enhancement
Technical Specification
| Image Core |
Monochrome Low-light Image Core |
| Sensor Resolution |
1280 x 1024 pixels |
| Shutter Type |
Rolling Shutter |
| Dynamic Range |
>60 dB |
| Video Interface |
HD-SDI 720p60 |
| Lens |
Integrated 6 mm F1.8 |
| Field of View |
97° horizontal |
| Latency |
Very Low Latency |
| Control Interface |
CAN/RS422 |
| Enclosure |
Rugged IP68 |
| Window |
Scratch Resistant |
| Operating Temperature |
-40°C to +60°C |
| Storage Temperature |
-55°C to +80°C |
| Operating Humidity |
5% to 95% RH, non-condensing |
| Vibration Resistance |
MIL-STD 810C, 514.2 (VIII), 70 hrs (Design Goal) |
| Shock Resistance |
MIL-STD 810C, 516.2(I), 30g, 3 directions (Design Goal) |
