800-0001236-000

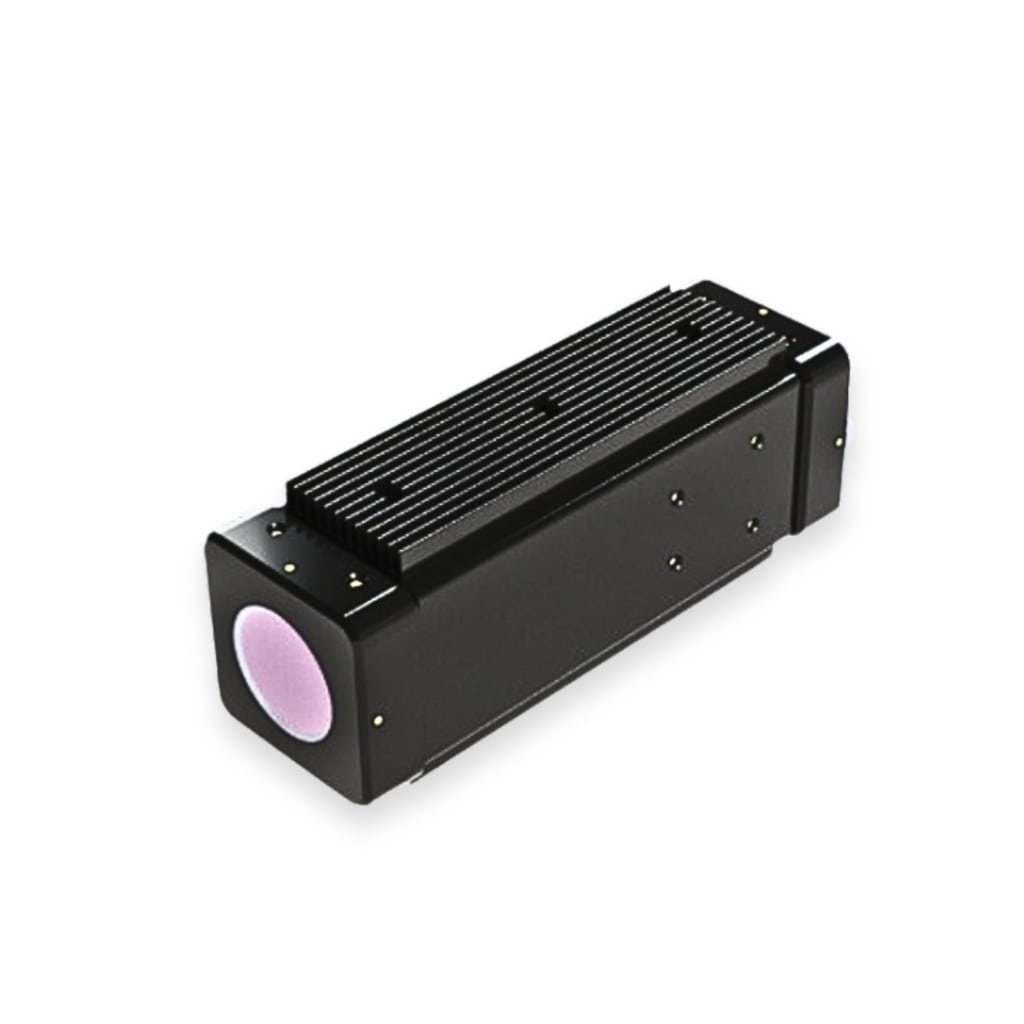

VisionBlade IR Camera

  • Resolution 640 x 480
  • SDI Output
  • 1G Ethernet Output with H264 compression
  • 90⁰ Horizontal Field of View (HFoV)
  • 67.5⁰ Vertical Field of View (VFoV)
This rugged and versatile camera offers simultaneous SDI and IP outputs, allowing for parallel or independent operation, with the SDI connection serving as a reliable video failsafe. It features an ONVIF IP output format and onboard H.264 video compression with adjustable bitrate settings for efficient data management. The camera delivers high-quality, clear video thanks to its field-proven 640 x 480 resolution sensor, capable of up to 60 frames per second with low latency. A global shutter ensures crisp images, even with fast-moving subjects. Designed for demanding environments, this current version camera is environmentally sealed to MIL-STD standards and features a 90-degree horizontal field-of-view (H-FOV) lens.
Video Outputs Simultaneous SDI and IP (parallel or independent use)
Failsafe Path SDI used as video failsafe path
IP Output Format ONVIF IP output format
Video Compression Onboard H.264 compression with adjustable bit rate
Image Resolution 640 x 480 (High-Quality, Field-proven sensor)
Frame Rate Up to 60 fps
Latency Low latency
Shutter Type Global Shutter
Durability Rugged, environmentally sealed, MIL-STD design
Current Version 90° H-FOV Lens

Technology for Harsh Environments –Across Air, Land, and Sea
